AIRBAND

What we offer here is a range of equipments to be used on the ground for communications with aircrafts in order to secure the place. Both ICOM and BECKER brands offer easy to use equipment, available as a handset portable station or as a ATC certified station, transportable or mobile.
We supply the full complement to a base station : backup power supply, coaxial cables and VHF gain antenna.

1. AIRBAND - PORTABLE TWO-WAY RADIO

For your aeronautical radio communications we offer various equipments for various purposes and situations.

The entry-level model is the IC-A15 ; should you have more needs, we have the very featured and new ICOM IC-A25 allowing radio communication between the ground and the pilot, on the airband frequencies 108-136 Mhz ; please note that such radio use is subject to authorization and can only be done in specific cases, in full respect of the local regulations.tant les règlementations locales.

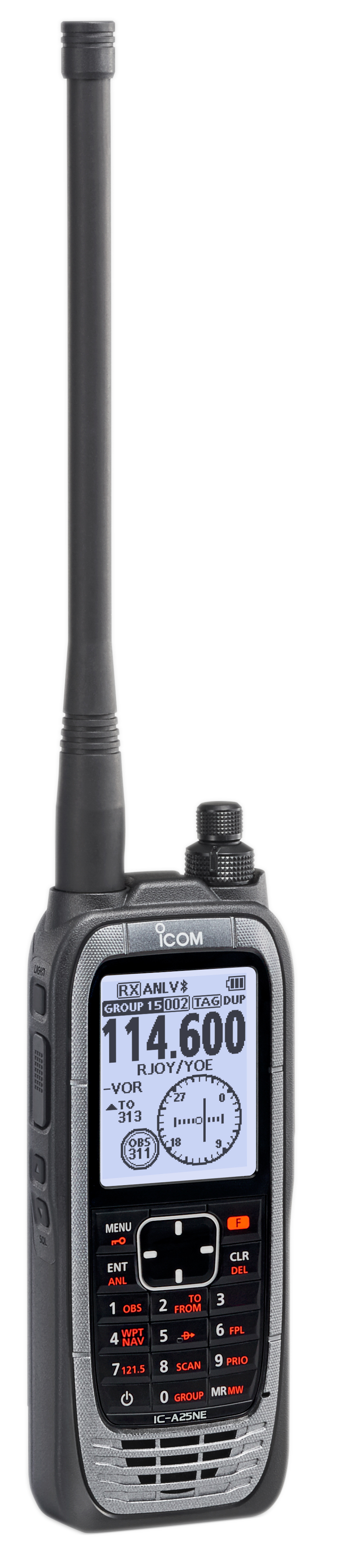

IC-A25 : Specifications

Large, High visibility LCD
Compact (58.9 × 148.4 × 31.8 mm) and light (384 g with battery), this handheld is fitted with a 2.3 inch large, high contrast and highly visible LCD (incl. "night/day" mode).

«Flip-flop» channell recall
The IC-A25NE/CE stores the last 10 channels used. You can easily recall those channels by using the directional keys, the channel knob or the keypad.

Easy to use
The IC-A25 has 300 memory channels (12 channels x 15 groups) with alphanumerical identification, and an emergency key transmitting a direct call on the 121,5 Mhz frequency.

The IC-A25NE version includes also :

Integrated Bluetooth to use hands-free accessories, simplified navigation by GPS positioning and the use of waypoints, advanced VOR navigation functions (OBS, CDI, etc.) along with a "Near Station" search function to find VOR stations

External DC jack
The external DC jack allow you to uoperate the radio when the equipment is in charge with the BC-224 wall-charger or the CP-20 ciagr-lighter charger.

Waterproof
IP-57 compliant (dust and water).

Please note that this equipment is not qualified as on-board equipment and cannot therefore replace the on-board radio



2.  AVIONICS MOBILE RADIO (ground)

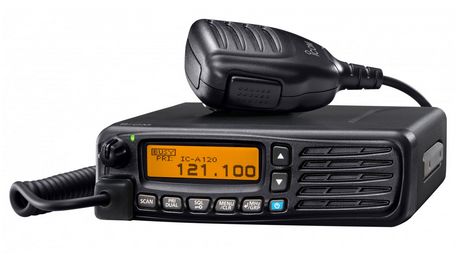

The "Base/Mobile" Icom IC-A120E is perfectly designed for ground cmmunication, installed either as a base or a mobile station, with the antenna and the appropriate power supply (mains 230Vac or 12-24Vdc).

Technically :IC-A120E

  • Channel spacing 8,33/25 kH
  • High readability full dot-matrix LCD
  • New ANC and ANL technologies (Active noise reduction) to reduce background and pulse-type noises
  • Optional Bluetooth Headset Connectivity Interface to connect compatible wireless accessories (Icom VS-3 earphone, Peltor headsetetc..)
  • Speaker in the front panel for a better audio
  • 200 memory channels available with 12-characters channel names (stored in the EEPROM to prevent memory deletion)
  • "side tone" function to be used with a headset (requires OPC-871A)
  • Scanning "intelligent" (ON-hook) and advanced (VFO or priority)
  • Microphone HM-217 (optional) with up and down keys.
  • Usable even in extreme conditions (IL-STD810 and Ingress protection standard IP54)
  • Compact size

Numerous accessories available : noise-cancellation headsets (active and passive), desk microphone SM26, speaker-microphone HM217, speaker-earphone, and antennas : base  0db or gain antennas, and mobile 0db.

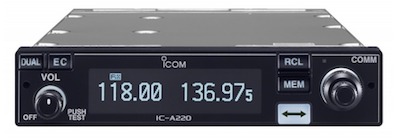

3.  AVIONICS  ONBOARD  : IC-A220

The IC-A220 is ETSO certified and is proposed as onboard equipment.

  • Follows the new regulations : channel spacing 8,33 and 25 kHz
  • Panel mount onboard primary radio ;  CE certified and accepted as an ETSO/TSO radio
  • Excellent visibility : OLED screen with large characters

    IC-A220 aviation

  • Automatic squelch
  • « Flip-Flop » channel recall : automatic storage of the channels
  • ANL noise reduction : automatic reduction of pulse type interferences

Intercom integrated for two headsets

  • Dualwatch and priority watch functions
  • Standard avionics rack
  • Delivered with a confomity certificate FAA FORM 8130-3 accepted by EASA under reciprocal acceptance policy



4.  AVIONICS ACT BASE STATION "Air Traffic control" certified

GK615BECKER avionics -  TSFsupply.be

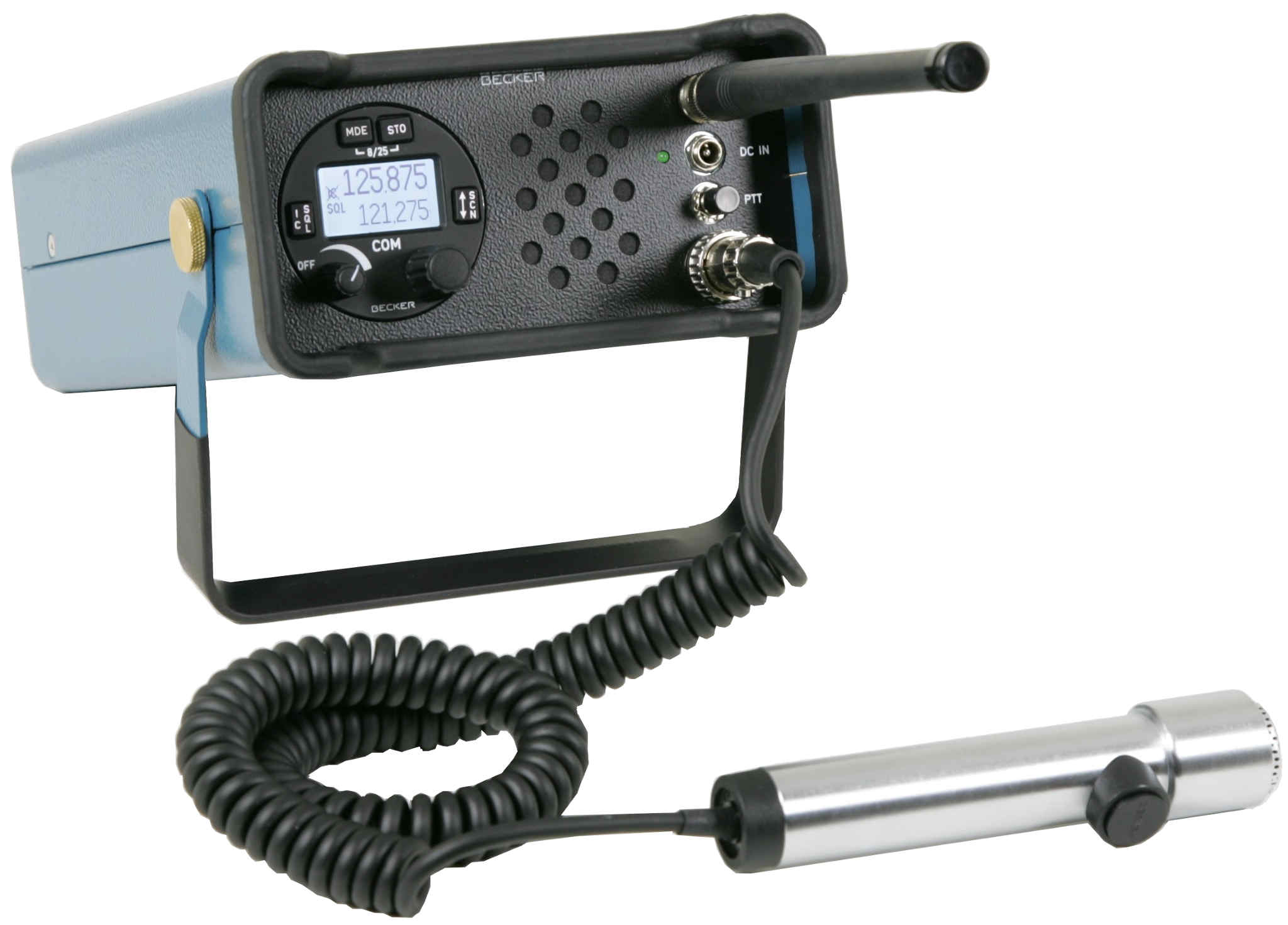

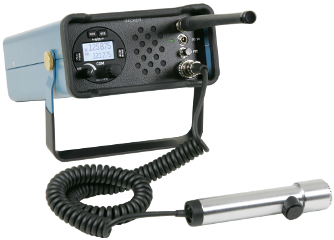

GK615 Unit

Becker GT6201

GT 6201 Unit



For your base station, we offer the equipment of the BECKER product line, ATC certified and designed to be used as ground station.

The GT6201 unit (6w or 10w) can be used for ground applications and is also suited for portable or vehicle installation (GK615). A loudspeaker microphone is also available, along with the following accessories :

1A415 Whip antenna
1A415-1 Steel-band antenna

ACCESSORIES PORTABLE VHF/AM TRANSCEIVER

 1A415-2  Multiflex antenna
 1AD415  Adapter UHF
 1BA016  Rechargeable Battery 12V/2.2Ah
 1BC415  Battery charger
 1CC415  Carrying case (soft)
 1K415  AC-Connector cable
 1KA415  Car battery cable
 1KA615  Car battery cable
 1MC012  Microphone holder
 1PH012 Speaker/Microphone for GK 415-()
 1PM012  High performance dynamic microphone
 1PM415-1  Standard dynamic microphone for GK 415-()

TSFsupply is a member of the distribution network of BECKER.
